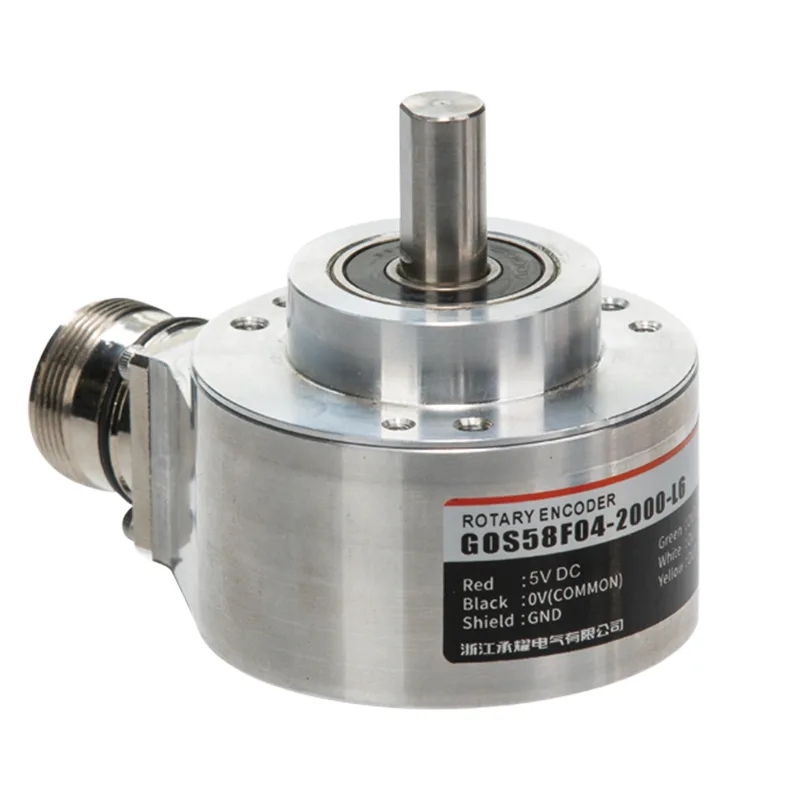

GOS58F04 Incremental Rotary Encoder delivers accurate positioning in various industrial applications. The GOS58F04 Incremental Rotary Encoder features a 58mm housing and optional 10mm shaft, ensuring adaptability. This GOS58F04 Incremental Rotary Encoder supports multiple output configurations, including a 24V line driver and short-circuit protection. Designed for automation, textile machinery, and more, it provides reliable measurement of displacement, angle, and speed. Experience robust performance, extended transmission up to 150m, and optimal integration in demanding industrial environments.
Features
- Outer diameter: φ58mm (shaft can be φ10mm)
- Reverse-connection and short-circuit protection provided
- Multiple output methods selectable

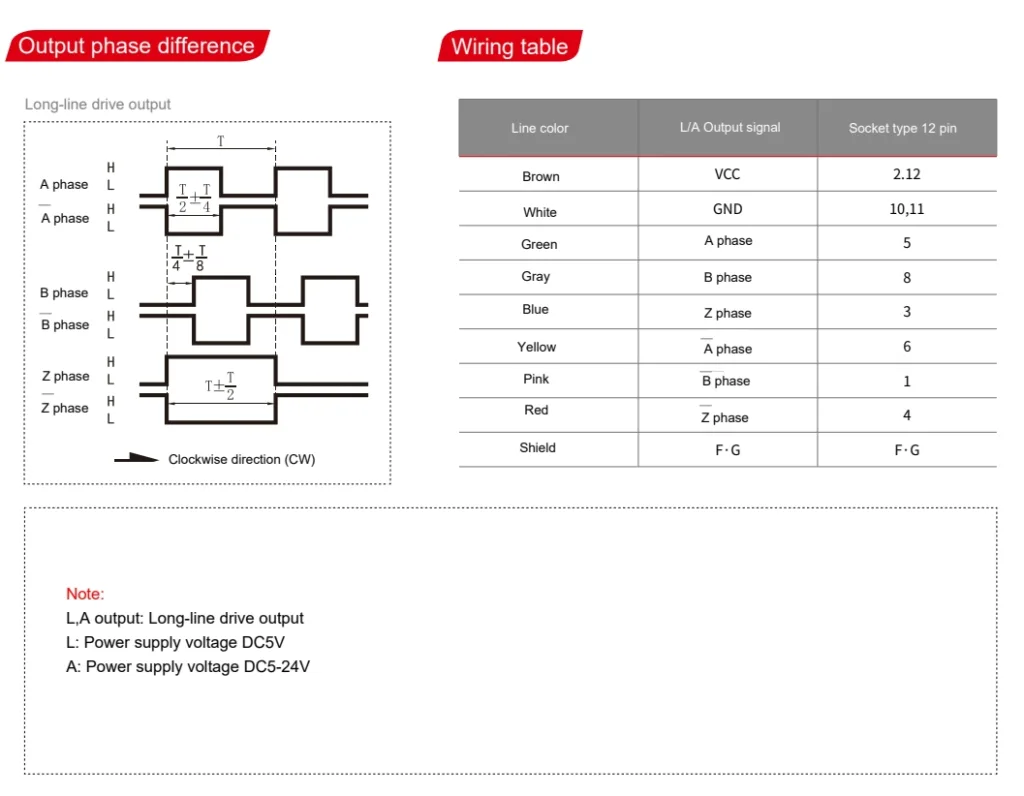

- 24V line driver output available, supports up to 150m long-distance transmission
Applications
- Automated and semi-automated fields for displacement, angle, speed, and length measurement
- Suitable for textile machinery and related industries
| Code Element | Description |
|---|---|
| G | Incremental type |
| O | Product category: Optical |
| S | Solid shaft structure |
| 58 | Outer diameter 58mm |
| 10 | Shaft diameter 10mm |
| F | Side plug (aviation connector) |
| 04 | Outer shape structure 4 |
| 500 | Resolution (e.g. 10,20,50,60,100…5000) |
| L | 5V driver output |
| 6 | ABZ signal |
| 2M | Default cable length: 2m |
