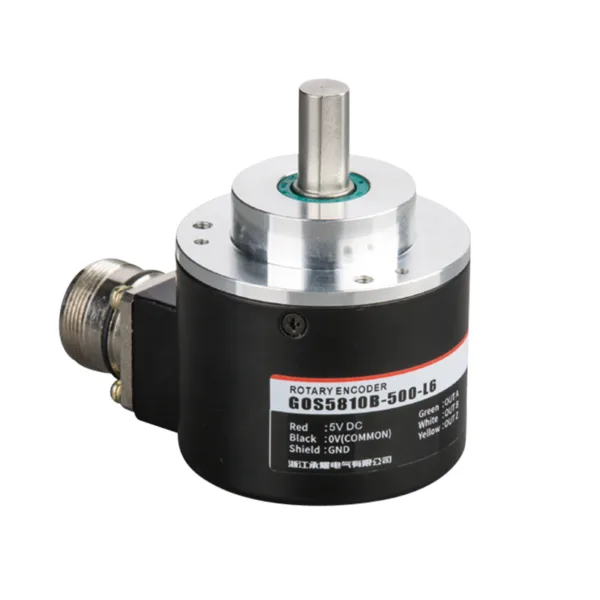

GOS58 Incremental Rotary Encoder is a reliable choice for various automation and semi-automation applications. Engineered with dust-cover shaft bearings, the GOS58 Incremental Rotary Encoder offers multiple shaft diameters (6–15mm) alongside reverse polarity and short-circuit protection. Designed for long-distance operation with a 24V line driver, the GOS58 Incremental Rotary Encoder ensures consistent and accurate measurements of displacement, angle, and speed up to 150 meters.
Features
- Shaft bearing uses dust-cover protection.
- Outer diameter φ58mm; optional shaft diameters: φ6mm, φ8mm, φ10mm, φ12mm, φ15mm.
- Reverse polarity and short-circuit protection.
- Selectable output types.
- 24V line driver output available for up to 150m long-distance transmission.
Applications
- Automation and semi-automation fields, measuring displacement, angle, speed, etc.
| Code / Items | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| S | Solid shaft |
| 58: φ58mm | Product outer diameter |
| 06/08/10/12/15 | Shaft diameter options: φ6mm, φ8mm, φ10mm, φ12mm, φ15mm |
| B | Cable exit & sealing form: B-side metal, D-rear metal, F-side plug, G-rear plug |
| 1000 | Resolution: 10,20,50,60,100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,3000,3600,5000 etc. |
| A | Output form: T-push-pull, L-5V driver, A-24V driver |

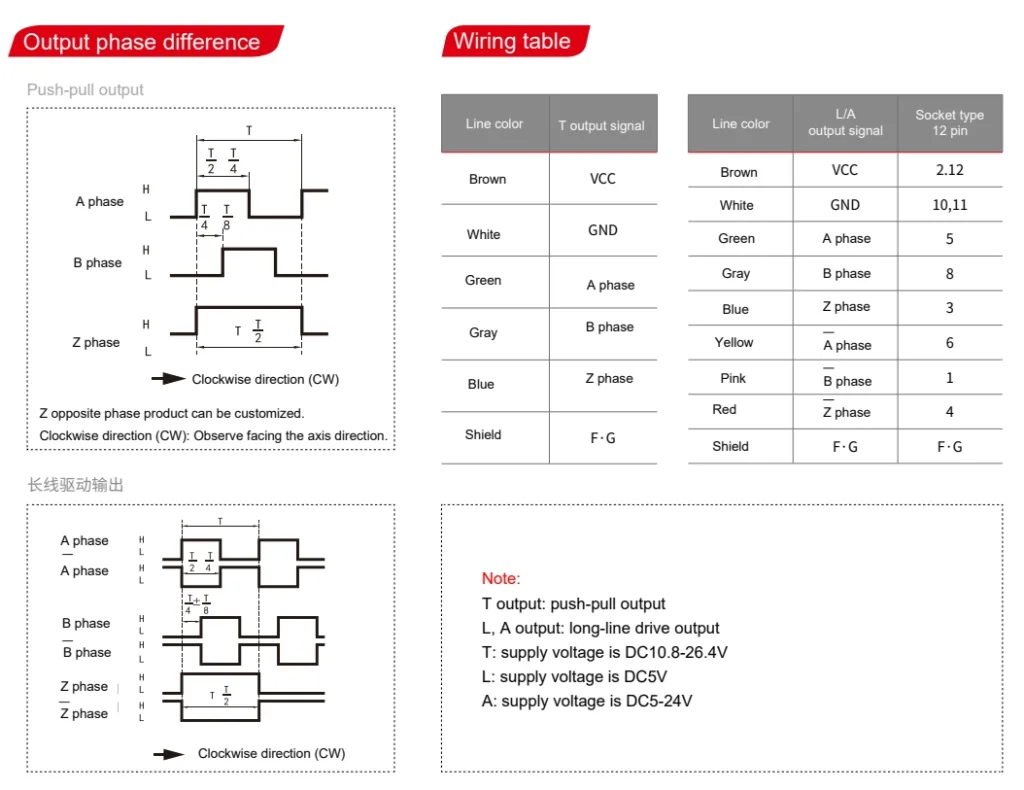

| 6 | Output signals: 1= A phase, 2= AB phases, 3= ABZ phases, 4= ABA/B/ phases, 6= ABZA/B/Z phases |
| 2M | Default 2m cable, otherwise specified |
Selection Example:
GOS5810B-500-L6-2M: Incremental type, solid shaft encoder, outside diameter 58mm, shaft diameter 10mm, side metal cable protector, 500 pulses, DC5V line driver output, ABZA/B/Z six-phase signals, 2m cable.
