GOH38A01 Incremental Rotary Encoder is designed for precision and durability in various industrial automation setups. This GOH38A01 Incremental Rotary Encoder delivers accurate speed feedback and ensures seamless integration with PLCs or other control systems.
Features
- Fully replaces Japanese NEMICON HES series
- Resolution up to 10000P/R
- Ultra-thin, high precision, and long lifespan
- Wrong-connection protection circuit
- Optimized anti-interference circuit
Applications
- Compatible with various PLCs and control systems
- Can be directly installed at the motor’s rear end
- Provides speed signal control functionality
| Code / Item | Meaning |
| G | Incremental type |
| O | Magnetic type |
| H | Half-hollow shaft |
| 38: φ38mm | Product diameter (38mm) |
| □: φ8mm (default) | Main shaft / hole size |
| A: rubber sheath cable | Cable & sealing style |
| 01: Exterior structure 1 | Outer shape design |
| 10,20,50,60,100...4096 | Resolution options (up to 10000P/R) |

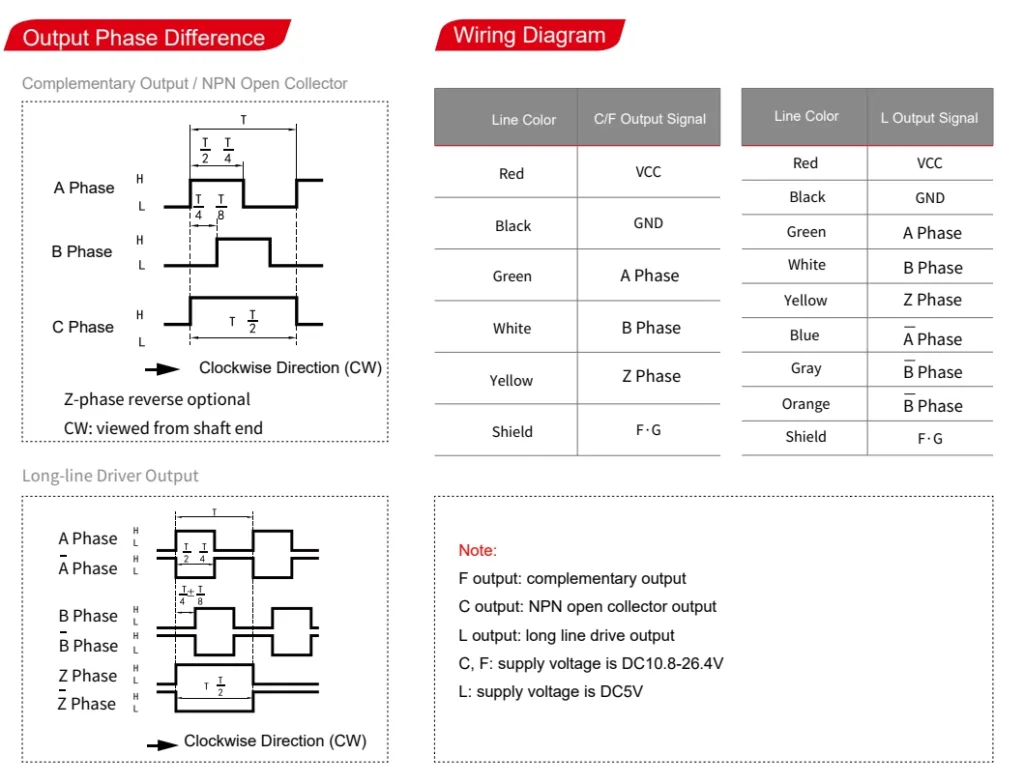

| C, F, L | Various output forms (e.g., open-collector, complementary) |
| 1, 2, 3, 4, 6 | Signal output types (A phase, AB phase, ABZ, etc.) |
| 0.7M | Default 0.7m cable length |
GOH38A01-2000-C3-0.7M: Incremental half hollow shaft encoder, diameter 38mm, hole size 8mm, side rubber sheath cable, 2000 pulses, DC10.8–26.4V open-collector output, ABZ triple-phase signals, 0.7m cable.
