描述

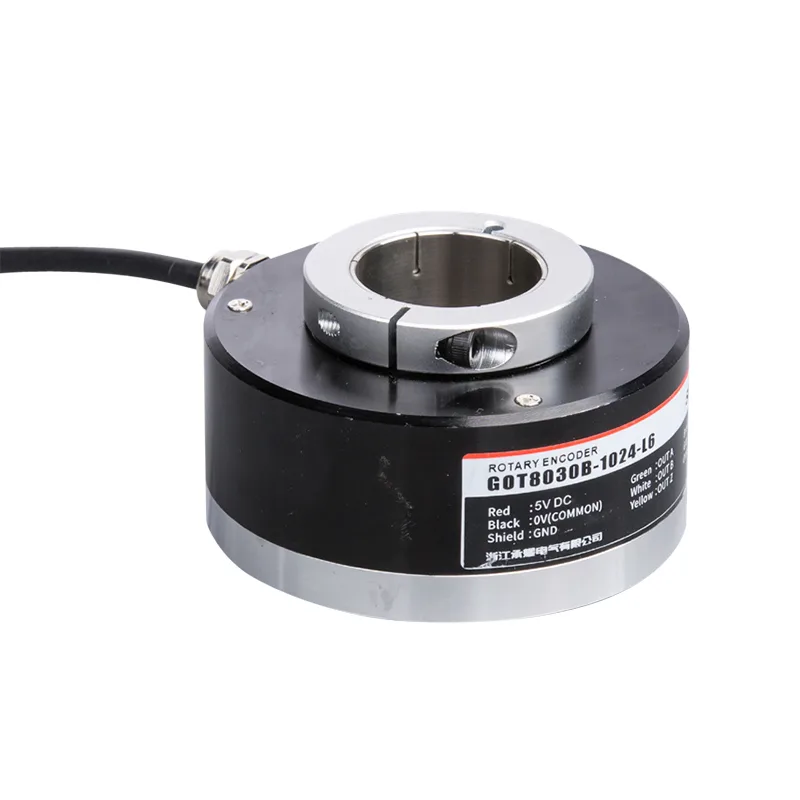

The GLT8030B Incremental Rotary Encoder features an 80 mm hollow-shaft design with optional through-hole sizes down to 20 mm. Built for reliable operation, the GLT8030B Incremental Rotary Encoder offers a broad range of resolutions (up to 4096 pulses) and multiple output forms, including 5V or 24V driver outputs. With side metal or aerospace cable outlets and a standard 2m cable, the GLT8030B Incremental Rotary Encoder suits diverse applications that require precise motion control. Its design supports reverse-protection, ensuring stable, long-term performance in industrial environments.
Features
- Uses protective oil-sealed cover

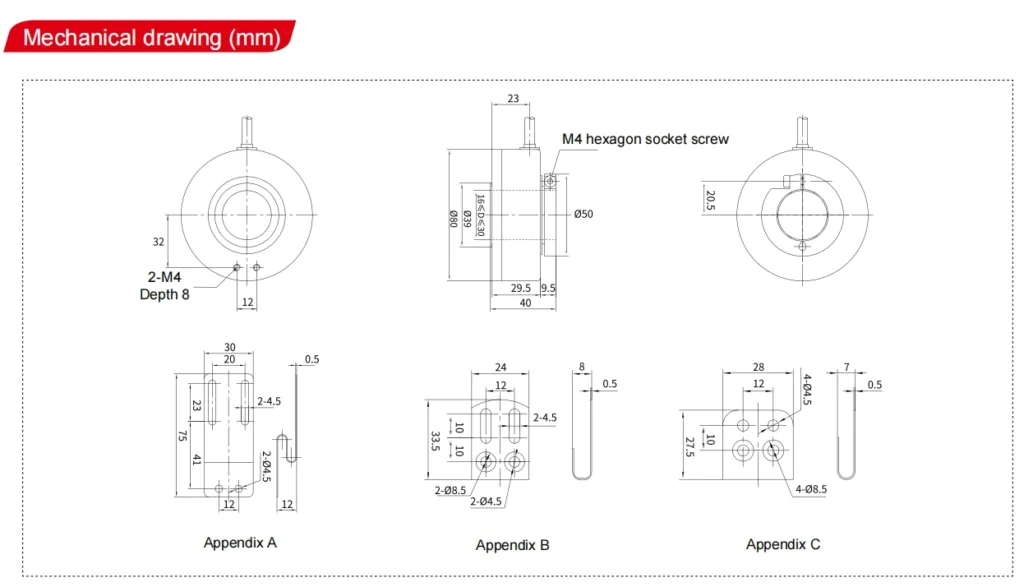

- Outer diameter: 80 mm; bore diameter: 30 mm (multiple specs)
- Employs spring-plate and customer-end connection
- 24V line-driver output supports up to 150 m transmission
Applications
Mainly applies to electric hoists, motors, textile machinery, and light-industry equipment for displacement and speed measurement
| Code | Meaning |
|---|---|
| G | Incremental type |
| L | Photoelectric |
| T | Hollow-shaft form |
| 80 | Outer diameter Φ80 mm |
| 30 | Through-hole: Φ30 mm (default); 28, 25, 22, 20 mm optional |
| B | Side metal cable gland |
| F | Aerospace side outlet |
| 1024 | Common resolutions: 100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,4096 |
| C | Open-collector output |
| F | Complementary output |
| L | 5V driver output |
| A | 24V line-driver output |
| 1/2/3/4/6 | Output signals: A, AB, ABZ, advanced variations |
| 2M | Default 2 m cable length |
Example
GLT8030B-1024-L6-2M: Incremental hollow-shaft optical encoder, 80 mm diameter housing, 30 mm bore, side metal cable gland, 1024 pulses, DC5V line-driver output, ABZA/B/Z signals, 2 m cable.
