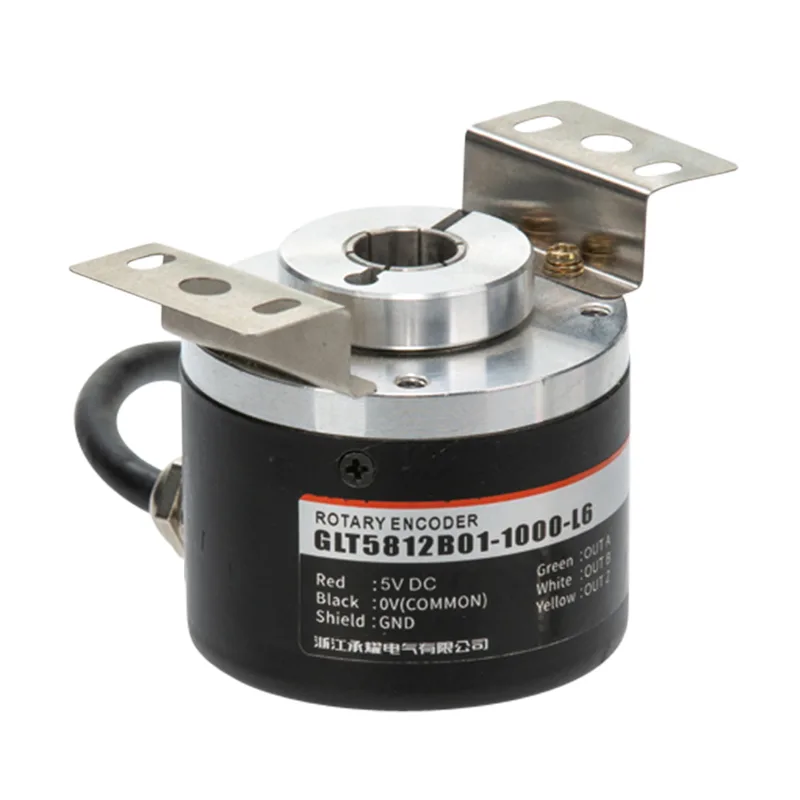

The GLT5812B01 Incremental Rotary Encoder provides a versatile through-shaft design for hole sizes ranging from 10mm to 15mm. Engineered with optional reverse-connection and short-circuit protection, the GLT5812B01 Incremental Rotary Encoder supports multiple resolutions and output methods, including a 24V line driver for transmission up to 150m. Ideal for automation and semi-automation applications, this GLT5812B01 Incremental Rotary Encoder accurately measures displacement, angle, and speed, ensuring reliable motion control in industrial environments. Its robust construction, metal cable gland, and standard 2m cable make installation safe and straightforward.

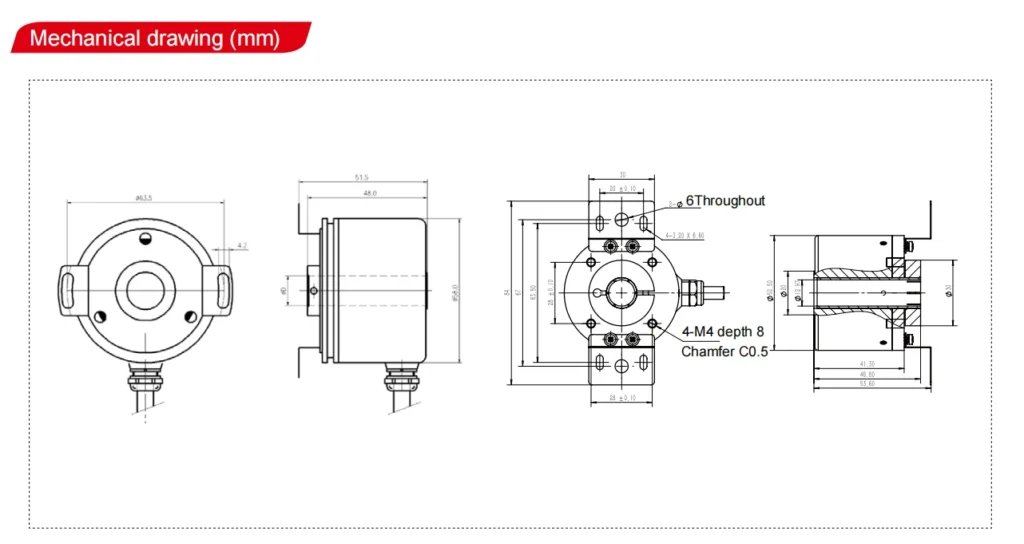

Features
- Outer diameter 58mm; through-hole options: 10mm, 12mm, 14mm, 15mm
- Reverse-connection and short-circuit protection (optional)
- Multiple output methods
- 24V line driver output available for up to 150m transmission
Applications
- Automation and semi-automation fields for measuring displacement, angle, speed, and counting
| Code | Description |
|---|---|
| G | Incremental encoder |
| L | Photoelectric type |
| T | Through-shaft / hollow-shaft design |
| 58 | Outer diameter: 58mm |
| 12 | Through-hole sizes: 10=Φ10mm, 12=Φ12mm, 14=Φ14mm, 15=Φ15mm |
| B | Metal side cable gland |
| 01 | External structure 1 |
| 1000 | Typical resolutions: 10,20,50,60,100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,3000,3600,5000 |
| T | Push-pull output type |
| L | 5V driver output |
| A | 24V driver output |
| 6 | Output signals (e.g., ABZ, ABZA/B/Z, etc.) |
| 2M | Default cable length 2m |
Example:
GLT5812B01-1000-L6-2M → Incremental hollow-shaft encoder, 58mm outer diameter, 12mm through-hole, side metal cable gland, external structure 1, 1000 pulses per revolution, 5V driver output, ABZA/B/Z signals, 2m cable length.
