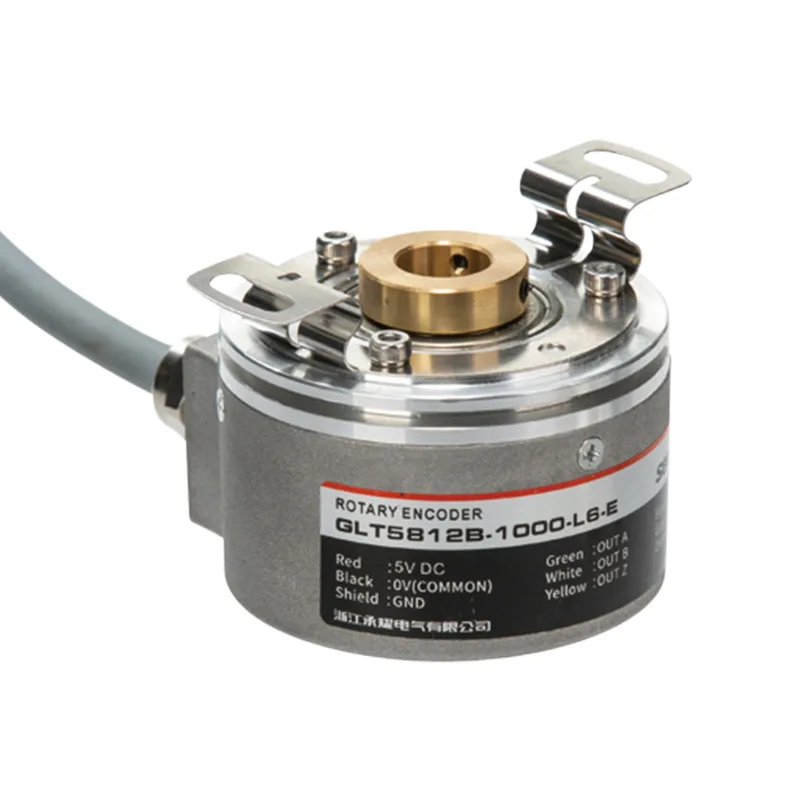

The GLT5812B Incremental Rotary Encoder provides flexible through-shaft configurations for diameter sizes 10mm, 12mm, 14mm, or 15mm. Designed with reverse-connection and short-circuit protection, the GLT5812B Incremental Rotary Encoder enables long-distance transmission up to 150m with an optional 24V line driver. Made for automation applications such as angle, speed, and position measurement, this GLT5812B Incremental Rotary Encoder ensures precision and high reliability in industrial environments. Various resolutions, output methods, and robust cable sealing round out the features for efficient motion control.
Features
- Outer diameter 58mm, through-hole diameters: 10mm, 12mm, 14mm, 15mm
- Reverse-connection and short-circuit protection
- Multiple output methods available
- Optional 24V line driver output for 150m long-distance transmission
Applications
- Automation, semi-automation fields for measuring position, angle, speed, and counting functions
| Code | Description |
|---|---|
| G | Incremental type |
| L | Photoelectric type |
| T | Through-shaft design |
| 58 | Outer diameter 58mm |
| 12 | Through-hole options: 10=Φ10mm, 12=Φ12mm, 14=Φ14mm, 15=Φ15mm |
| B | Side metal cable gland |
| 1000 | Resolutions: 10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 5000, etc. |
| L | 5V driver output (T = push-pull, A = 24V driver) |
| 6 | Signals: ABZA/B/Z (1 = A, 2 = AB, 3 = ABZ, etc.) |
| 2M | Default cable length: 2m |
Example: GLT5812B-1000-L6-2M: An incremental hollow-shaft encoder with Φ58mm, Φ12mm through-hole, side metal cable gland, 1000 pulses per revolution, DC5V driver output, ABZA/B/Z signals, 2m cable.
