The GLT58 Incremental Rotary Encoder delivers reliable through-shaft measurement with a 58mm diameter and multiple hole-size options. Engineered with labyrinth seal bearing protection, short-circuit safeguards, and 24V line driver capability, the GLT58 Incremental Rotary Encoder supports up to 150m transmission. Its robust photoelectric design, combined with flexible resolution choices, makes the GLT58 Incremental Rotary Encoder an ideal solution for automation, semi-automation, and industrial applications dealing with displacement, angle, and speed monitoring. High reliability, compact form factor, and various output interfaces ensure seamless integration for precise motion control.
Features
- Labyrinth seal at bearing area
- Outer diameter: 58mm, through-hole options: Φ12mm or Φ15mm
- Reverse connection and short-circuit protection

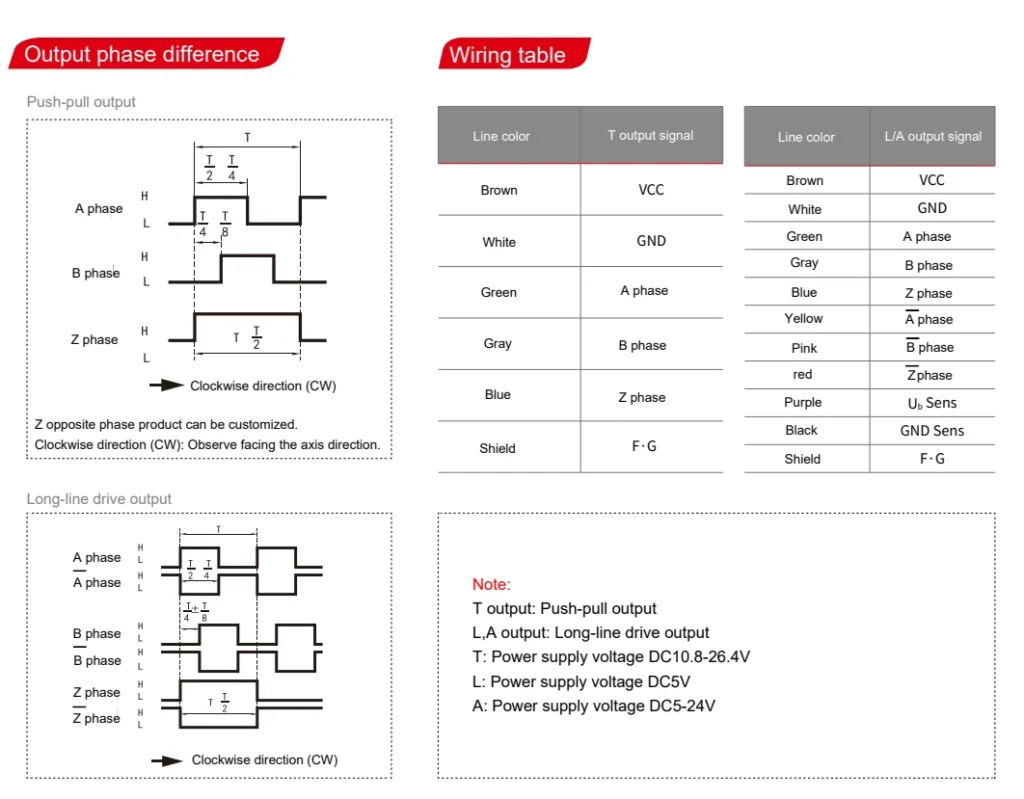

- Various output methods selectable
- Optional 24V line driver output for up to 150m transmission
Applications
- Automation and semi-automation for displacement, angle, speed, and counting functions
| Code | Description |
|---|---|
| G | Incremental type |
| L | Photoelectric type |
| T | Through-shaft |
| 58 | Outer diameter 58mm |
| B | Side cable with metal gland |
| 10:Φ10mm | Through-hole diameter 10mm |
| 12:Φ12mm | Through-hole diameter 12mm |
| 14:Φ14mm | Through-hole diameter 14mm |
| 15:Φ15mm | Through-hole diameter 15mm |
| 1000 | Resolution range: 10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 5000, etc. |
| L (5V) | 5V driver output |
| 6 | ABZ signals (A/B/Z) |
| 2M | Default 2m cable length |
Example: GLT5812B-1000-L6-2M (Incremental hollow-shaft encoder, φ58mm, φ12mm through-hole, side metal gland, 1000 PPR, DC5V driver output, ABZA/B/Z signals, 2m cable)
