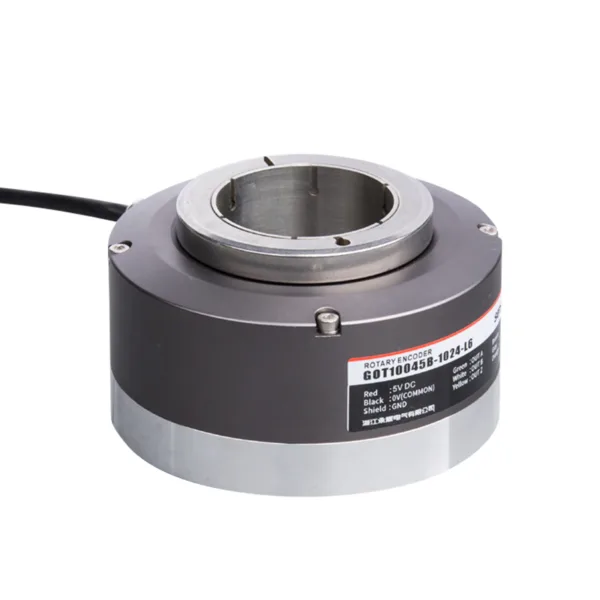

The GLT10045B Incremental Rotary Encoder integrates a heavy-load imported bearing with a 100 mm housing and a 45 mm bore for demanding industrial tasks. Designed to support up to 150 m long-distance transmission, the GLT10045B Incremental Rotary Encoder is ideal for cranes, elevators, hoisting machinery, and wind power applications. With a versatile 24V line-driver output, the GLT10045B Incremental Rotary Encoder ensures reliable displacement and speed feedback in harsh environments. Thanks to its spring-plate connection, installation is both secure and convenient, making the GLT10045B Incremental Rotary Encoder a robust solution for heavy-load motion control.
Features
- Uses heavy-load imported bearing
- Outer diameter: Φ100 mm; bore diameter: Φ45 mm (multiple specs)
- Employs spring-plate and customer-end connection, easy to install
- Has 24V line-driver output to achieve up to 150 m long-distance transmission
Applications
- Suitable for crane industry, hoisting industry, wind power, elevator industry, motor industry, etc., measuring displacement and speed
| Code | Meaning |
|---|---|
| G | Incremental type |
| L | Photoelectric (with Z channel) |
| T | Through-hollow-shaft design |
| 100 | Outer diameter: Φ100 mm |
| 45 | Bore diameter: Φ45 mm (default), optional: 40 mm, 38 mm, 35 mm, 30 mm |
| B | Side metal cable gland |
| F | Aerospace side outlet |
| 1024 | Common resolutions: 100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,4096 |
| L | 5V driver output |
| A | 24V driver output |
| 1/2/3/4/6 | Output signals: A, AB, ABZ, advanced forms |
| 2M | Default 2 m cable length |
Example
GLT10045B-1024-L6-2M: Incremental hollow-shaft optical encoder, Φ100 mm housing, Φ45 mm bore, side metal cable gland, 1024 pulses, DC5V line-driver output, ABZA/B/Z signals, 2 m cable.
