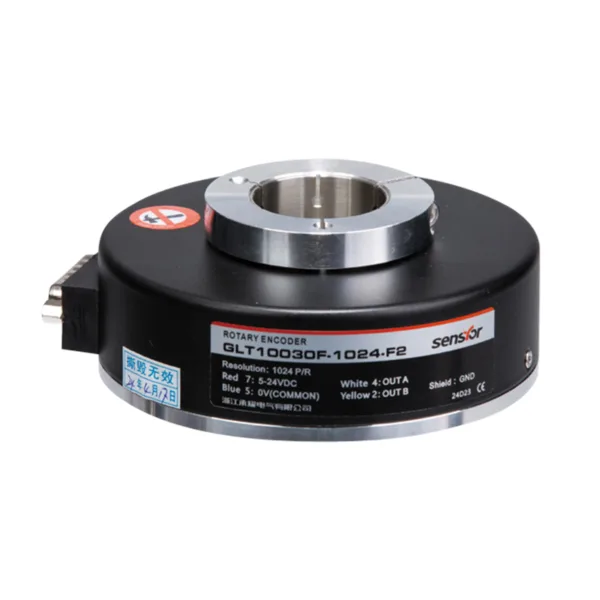

The GLT10030B Incremental Rotary Encoder excels with a 100 mm heavy-load imported bearing and a hollow shaft design (30 to 45 mm options). Designed for crane, hoisting, wind power, and motor industries, the GLT10030B Incremental Rotary Encoder offers spring-plate connectivity for stable installation. Its 24V line-driver output extends up to 150 m, while multiple resolutions (100 to 4096) ensure precise displacement and speed measurements. Produced for robust performance, the GLT10030B Incremental Rotary Encoder seamlessly integrates into demanding environments, making it a reliable solution for heavy-load motion control.
Features
- Uses heavy-load imported bearing

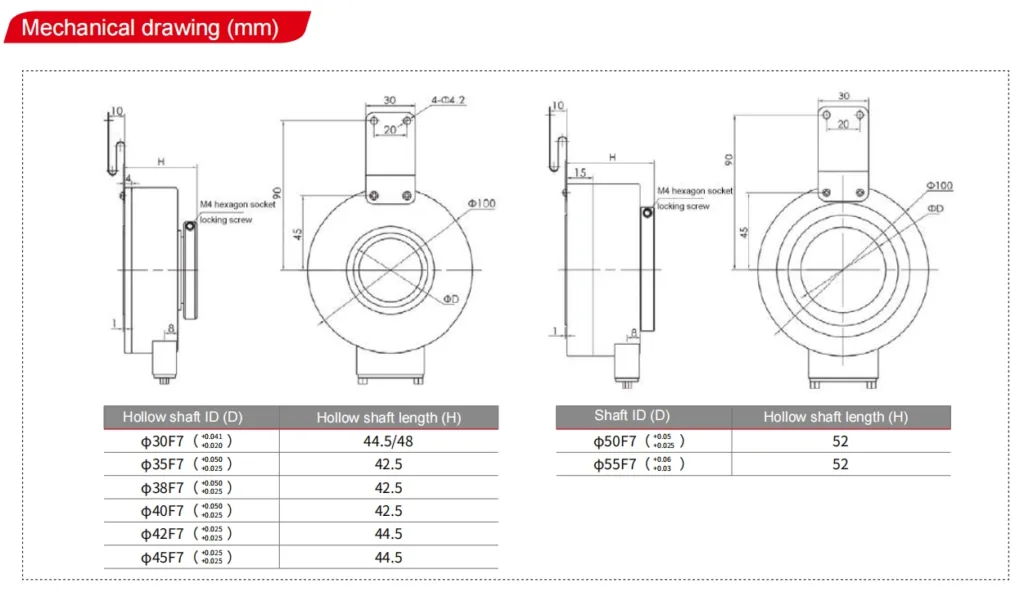

- Outer diameter: Φ100 mm; bore diameter: Φ30 mm (multiple options)
- Adopts spring-plate and client-end connection, easy to install
- Equipped with 24V line-driver output for up to 150 m transmission
Applications
- Suited for crane industry, hoisting industry, wind power, elevator industry, motor industry, etc. to measure displacement and speed
| Code | Meaning |
|---|---|
| G | Incremental type |
| L | With Z-channel photoelectric |
| P | Without Z-channel photoelectric |
| T | Through-hollow-shaft form |
| 100 | Outer diameter: Φ100 mm |
| 30 | Bore size Φ30 mm (default) |
| 35 | Bore size Φ35 mm |
| 38 | Bore size Φ38 mm |
| 40 | Bore size Φ40 mm |
| 45 | Bore size Φ45 mm |
| B | Side metal cable gland |
| F | Plug side outlet |
| 1024 | Common resolutions: 100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,4096 |
| L | 5V driver output |
| A | 24V driver output |

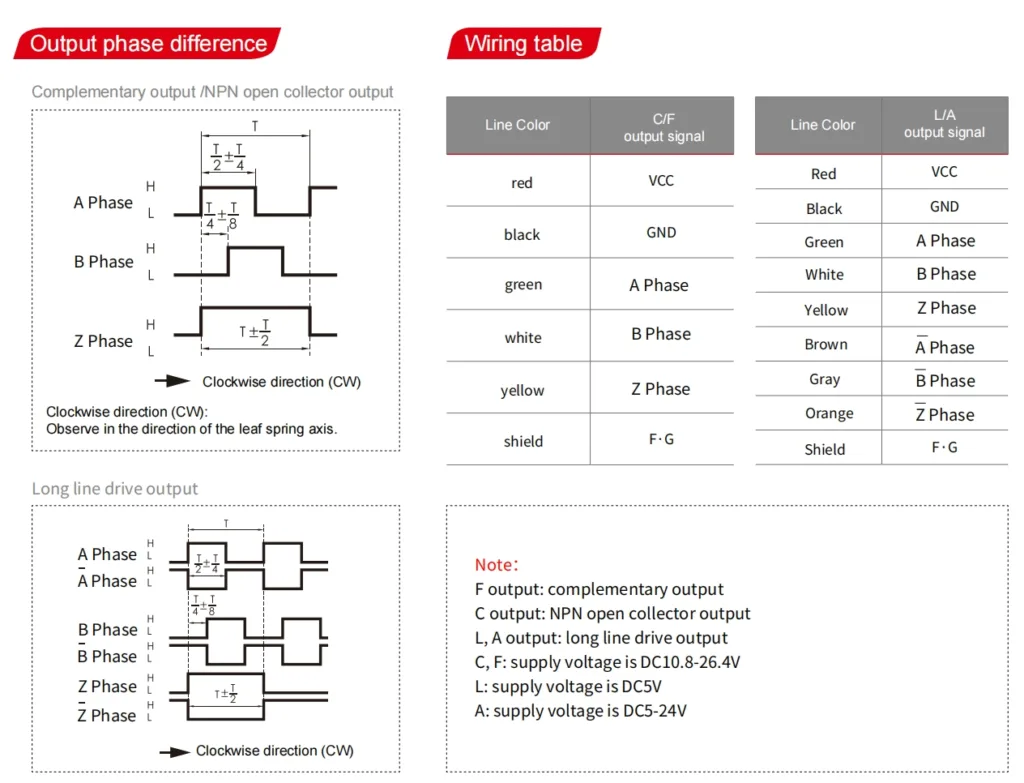

| 1/2/3/4/6 | Output signals (A, AB, ABZ, etc.) |
| 2M | Default 2 m cable length |
Example
GLT10030B-1024-L6-2M: Incremental hollow-shaft optical encoder, 100 mm outer diameter, 30 mm bore, side metal cable gland, 1024 pulses, DC5V line-driver output, ABZA/B/Z signals, 2 m cable.
