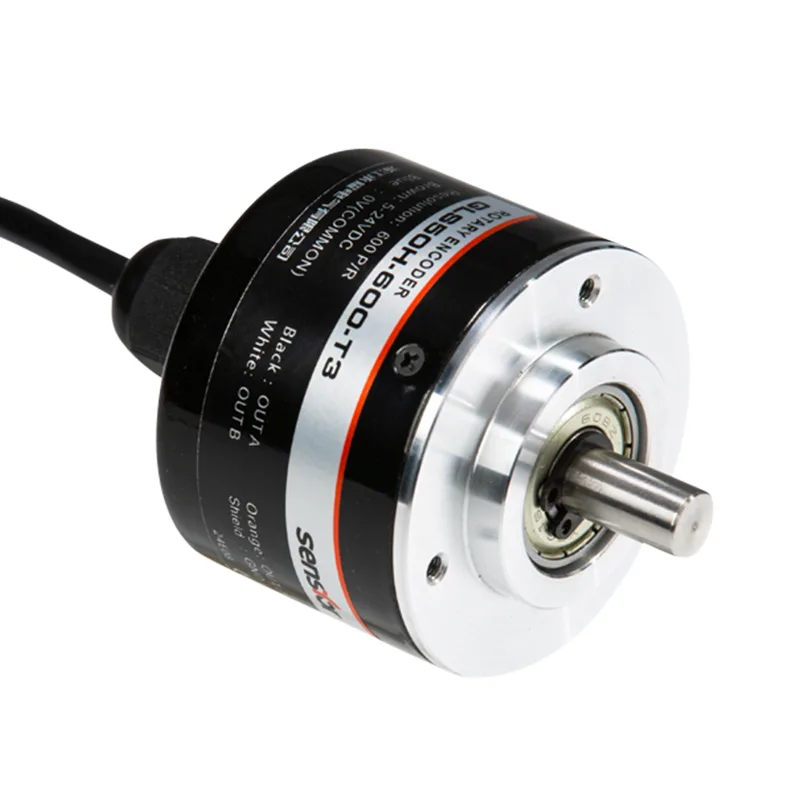

GLS50H Incremental Rotary Encoder is engineered for accurate industrial measurement and extended transmission reach. Featuring a sealed plastic connector, this GLS50H Incremental Rotary Encoder resists dust and oil, ensuring robust performance. Designed with push-pull outputs and short-circuit protection, the GLS50H Incremental Rotary Encoder supports distances up to 150m, making it ideal for both automated and semi-automated applications.
Features
- Fully replaces Korean Autonics E50S series
- Uses plastic waterproof connector, dust-proof and oil-proof
- Equipped with short-circuit and circuit protection
- Adopts push-pull output, increased output drive capability
- Supports 24V line driver output for 150m long-distance transmission
Applications
- Automatic and semi-automatic domains
- Measurement of displacement, angle, speed, etc.
| Code / Item | Meaning |
|---|---|
| G | Incremental type |
| L | Photoelectric type |
| S | Solid shaft |

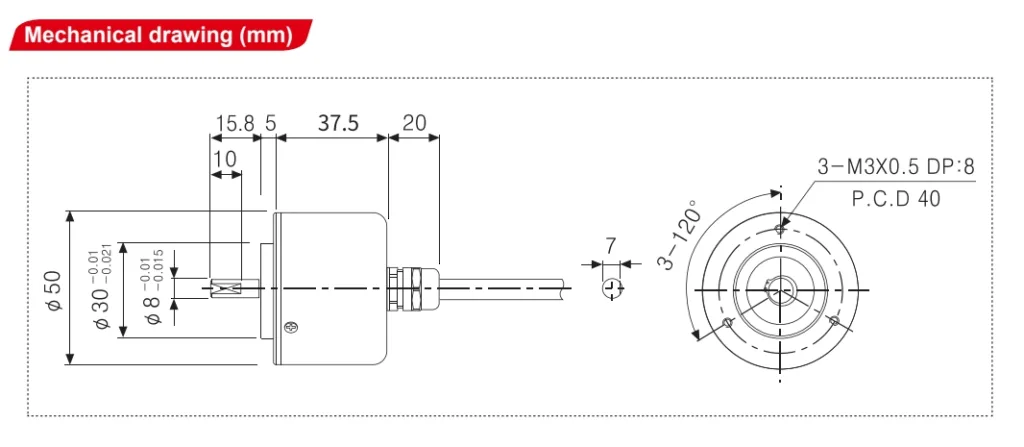

| 50: φ50mm | Product diameter (50mm) |
| □: φ8mm (default) | Shaft / hole size |
| H: rear plastic output | Cable exit and sealing style |
| 10,20,50...4096 | Resolution options (up to 3600 or 4096, etc.) |

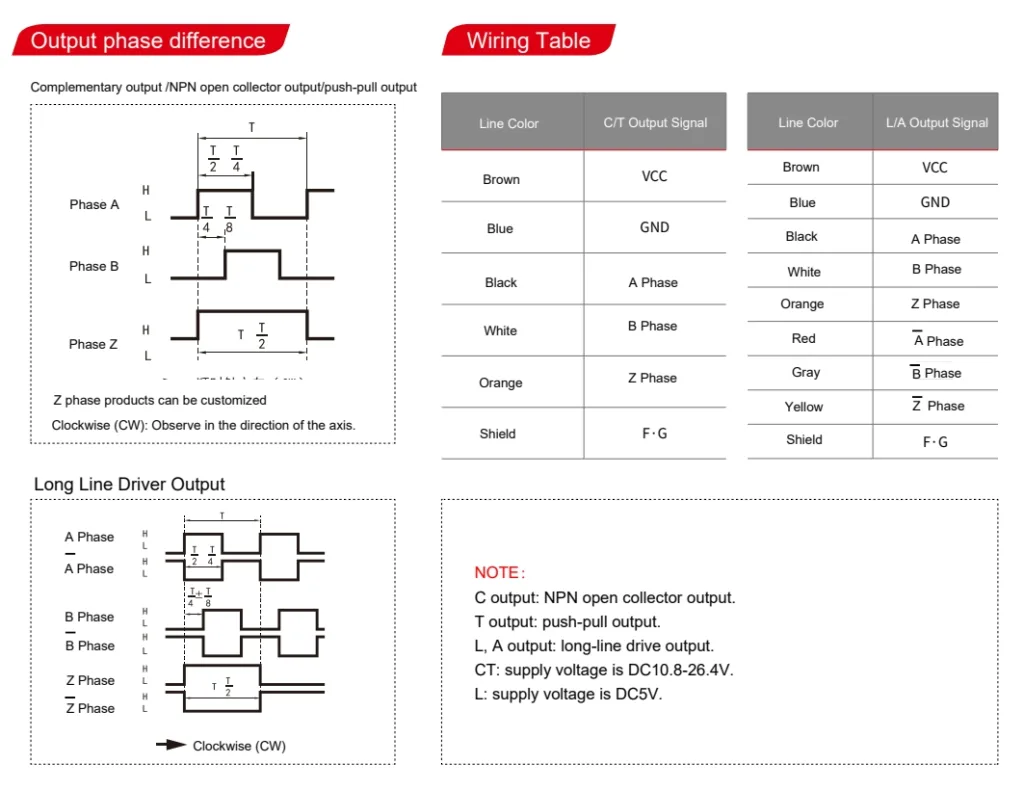

| T: push-pull output | Output form |
| 3: ABZ signals | Output signals |
| -2M | Default 2m cable length, DC10.8–26.4V |
Selecting Example:
GLS50H-1000-T3-2M: Incremental solid shaft encoder, diameter 50mm, shaft diameter 8mm, rear plastic cable protector, resolution 1000 pulses, DC10.8–26.4V push-pull output, ABZ triple-phase signals, 2m cable.
