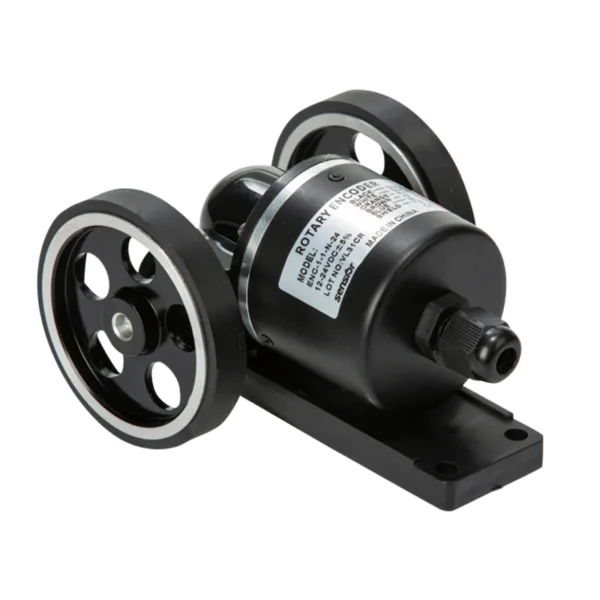

The ENC Meter wheel Encoder is a robust and versatile solution for precise linear distance measurements. Equipped with dual measuring wheels for enhanced grip and stability, the ENC Meter wheel Encoder offers superior accuracy in a wide range of industrial applications. Its sturdy housing, reliable output signals, and user-friendly installation make the ENC Meter wheel Encoder an ideal choice for conveyor systems, textile lines, or packaging plants. Consistent, long-lasting, and efficient, the ENC Meter wheel Encoder ensures high-resolution readings without compromising on durability or performance.

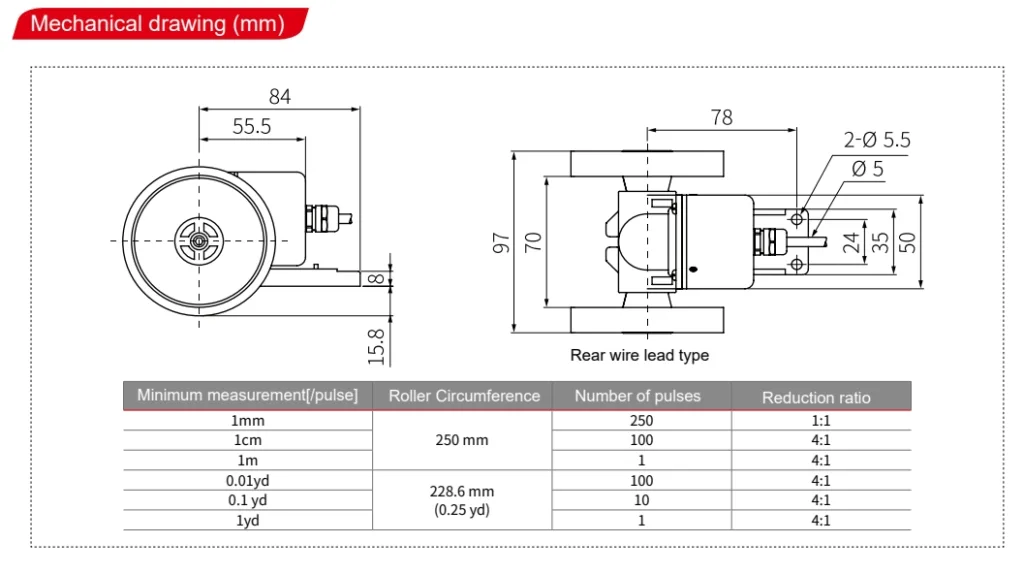

Features
- Housing is sturdy, corrosion-resistant, long service life
- Ultra-long measurement range of 0–10000mm (10m), high accuracy

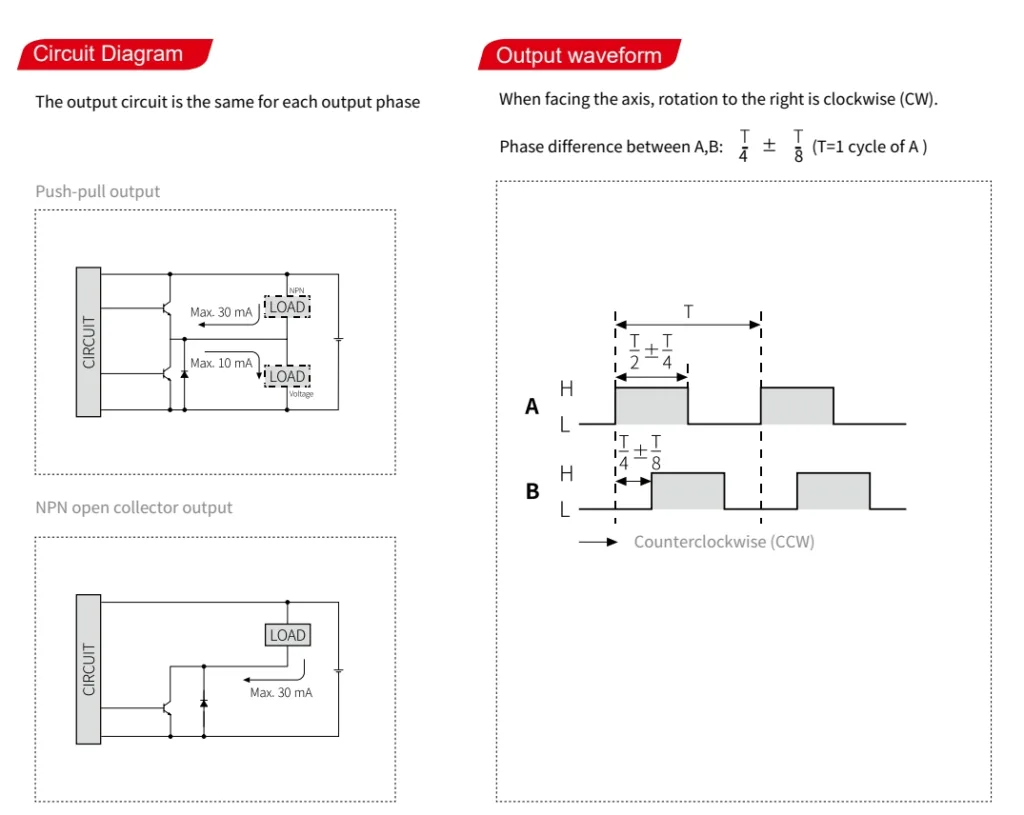

- Multiple output types
Applications
- Hydraulic cylinder stroke detection, valve opening detection, forklift lifting detection
- Automated warehousing, test bench measurement, etc.
| Code | Meaning |
|---|---|
| LX120S | Draw wire encoder series |
| 1000:1000BM(0.2) | 1000 pulses, resolution factor (0.2) |
| 2000:2000BM(0.1) | 2000 pulses, resolution factor (0.1) |
| 2500:2500BM(0.08) | 2500 pulses, resolution factor (0.08) |
| 5000:5000BM(0.04) | 5000 pulses, resolution factor (0.04) |
| 05/5V, 12/12V, 24/24V, 526/5–26V, A/24V | Operating voltage (5V, 12V, 24V, 5–26V, 24V driver) |
| C | Open-collector output |
| F | Complementary output |
| T | Push-pull output |
| L | 5V driver output |
| A | 24V driver output |
| 10M | Measurement stroke up to 10m |
| 2G, 2E, etc. | Cable length/direction: 2m side exit (2G), rear exit (2E), etc. |
| 1, 2, 3, 4 | Pull-head shape: cylindrical (1), ring (2), hook (3), lock (4) |
Example: LX120S-1000-24F10M-2G1 = Small draw wire encoder, 1000 pulses, DC24V complementary output, 10m measurement stroke, 2m cable side exit, cylindrical pull head.
