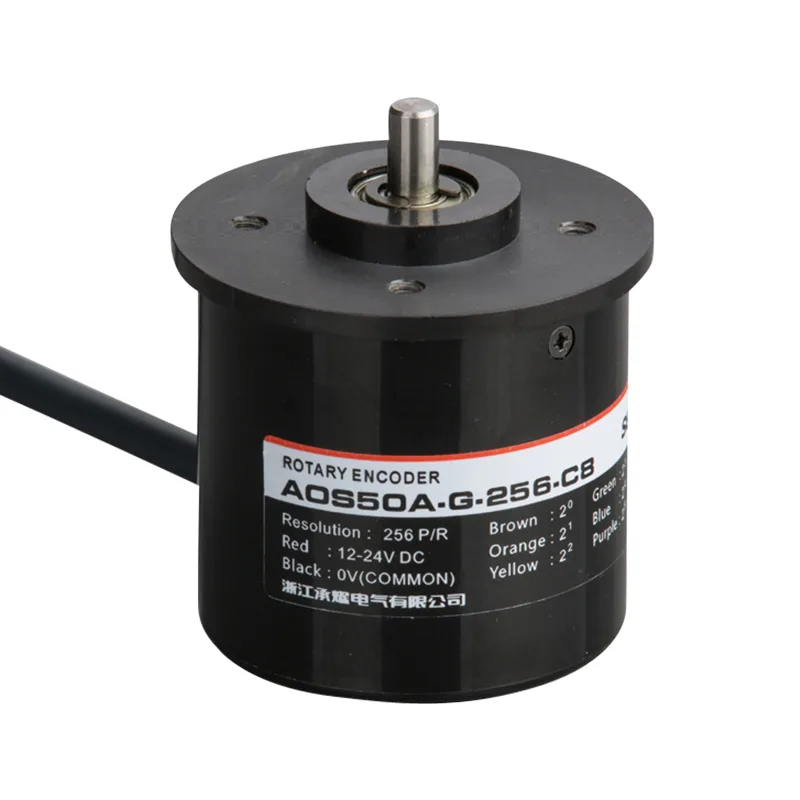

AOS50A Incremental Rotary Encoder is designed with 8–12bit parallel outputs for high-speed angle detection in textile machinery. Built as an enhanced OMRON E6CP replacement, the AOS50A Incremental Rotary Encoder offers optimized algorithms for greater frequency response. Undergoing pulse group interference trials and static tests, the AOS50A Incremental Rotary Encoder ensures steady performance and reliability.
Features
- Enhanced replacement for Japanese OMRON E6CP series
- 8–12bit parallel absolute signals
- Optimized algorithm for higher frequency response and speed
- Passed pulse group interference and static electricity tests
- Company patent, SoftYi product
Applications
- Mainly used in textile machinery for measuring angles
| Code / Item | Meaning |
|---|---|
| A | Parallel absolute value |
| O | Magnetic type |
| S | Solid shaft |
| 50: φ50mm | Product diameter (50mm) |
| □: φ6mm (default) | Shaft/hole size |
| A: side rubber sheath | Cable exit & sealing style |
| G: Gray code / N: Binary | Output code forms |
| 256,360,512,720,1024,2048,4096 | Resolution options |
| C: NPN open-collector / P: PNP | Output format |
| 8:8bit, 9:9bit, 10:10bit, 12:12bit | Output signal bits |
| -2M | Default 2m cable, DC10.8–26.4V |
Selection Example:
AOS50A-G-256-C8-2M: Parallel absolute solid-shaft encoder, diameter 50mm, shaft diameter 6mm, side rubber cable protector, Gray code, resolution 256, DC10.8–26.4V NPN open-collector output, 8-bit, 2m cable.
